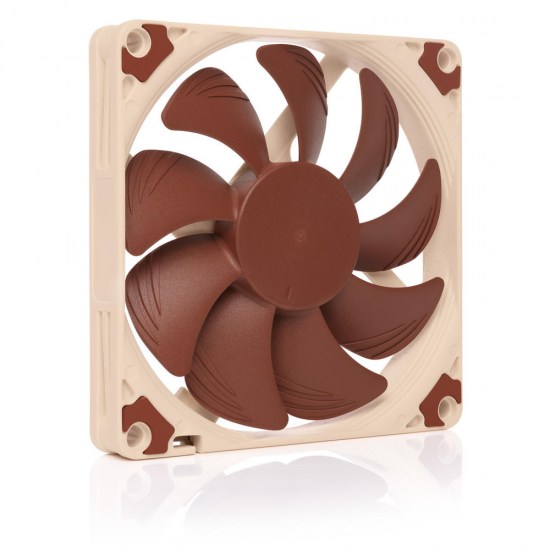

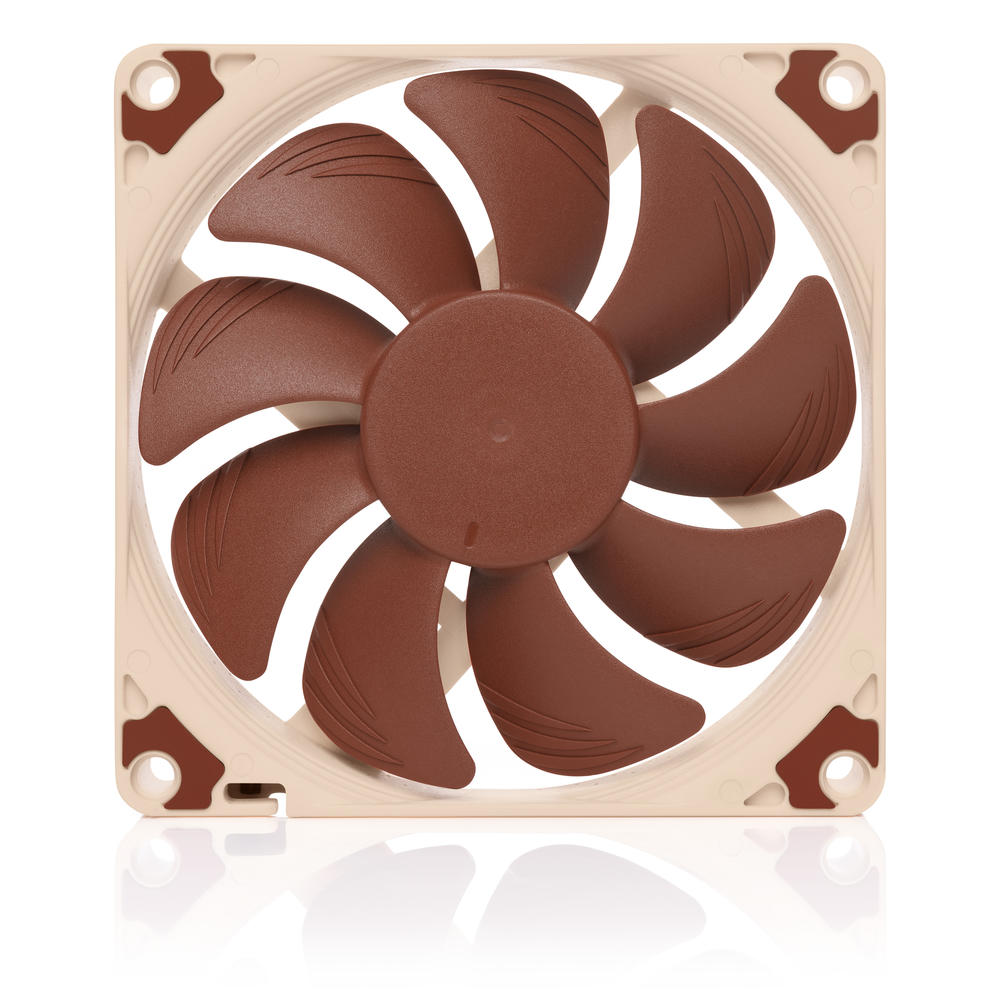

NOCTUA NF-9x14PWM
Featuring Noctua’s AAO frame and sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A9x14 is a highly optimised, premium quality quiet fan in 92x14mm size. Due to its thickness of only 14mm, the NF-A9x14 is a perfect match for low profile CPU coolers and all other applications that require slimmer fans. Noctua’s custom-designed PWM IC for fully automatic speed control and reference class SSO2 bearings guarantee superb running smoothness and excellent long-term stability. Topped off with modular cabling, a Low-Noise Adaptor and 6 years manufacturer’s warranty, the NF-A9x14 is a premium choice for the highest demands.
FAN Specification
Size
92x92x14 mm
Mounting hole spacing
82,5x82,5 mm
Connector & pin-configuration
4-pin PWM
Cable length
20cm + 30cm NA-EC1 extension cable
Bearing
SSO2
Blade geometry
A-Series with Flow Acceleration Channels
Frame technology
AAO (Advanced Acoustic Optimisation)
Rotational speed (+/- 10%)
2200 RPM
Rotational speed with L.N.A. (+/- 10%)
1700 RPM
Min. rotational speed (PWM, +/-20%)
500 RPM
Airflow
50,5 m³/h
Airflow with L.N.A.
38,1 m³/h
Acoustical noise
19,9 dB(A)
Acoustical noise with L.N.A.
13,5 dB(A)
Static pressure
1,64 mm H₂O
Static pressure with L.N.A.
0,92 mm H₂O
Max. input power
1,32 W
Max. input current
0,11 A
Operating voltage
12 V
MTTF
> 150.000 h

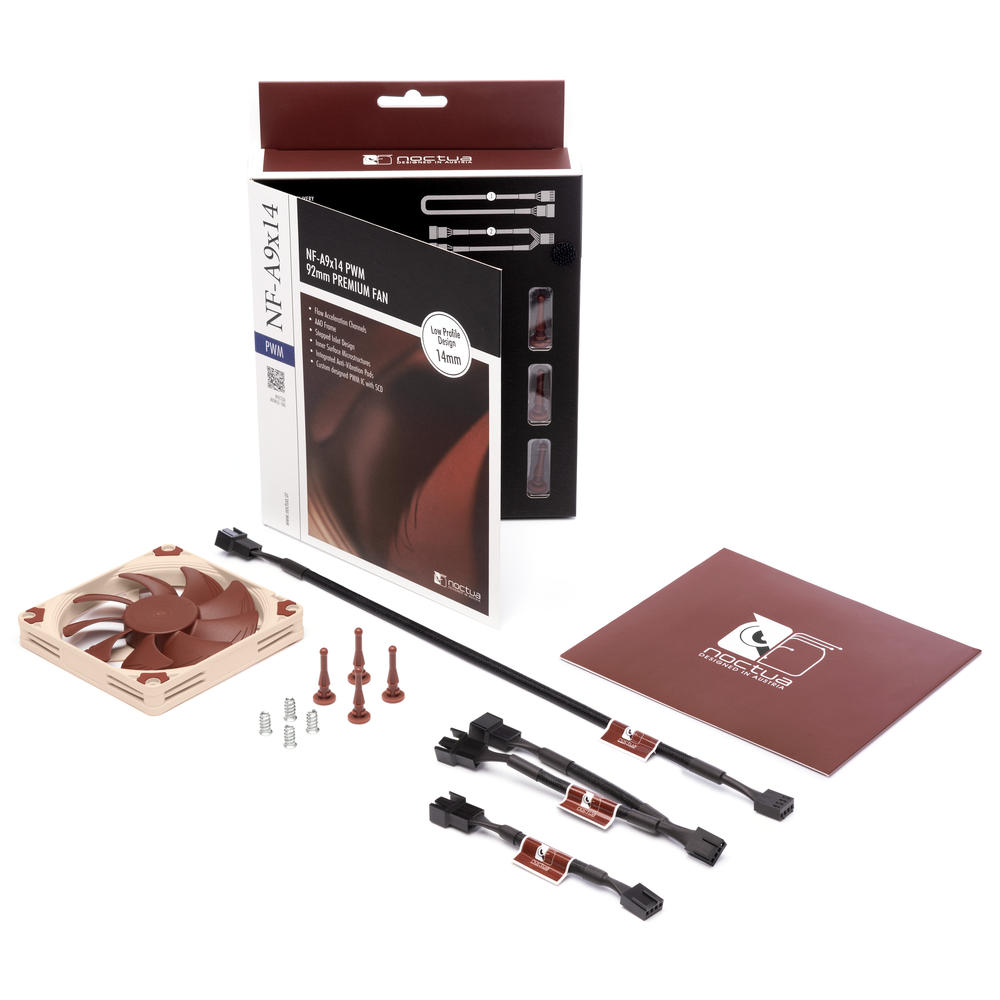

Scope of delivery
Low-Noise Adapter (L.N.A.)
4-Pin Y-Cable
30cm Extension Cable
4 Vibration-Compensators
4 Fan Screws
Warranty
6 years
