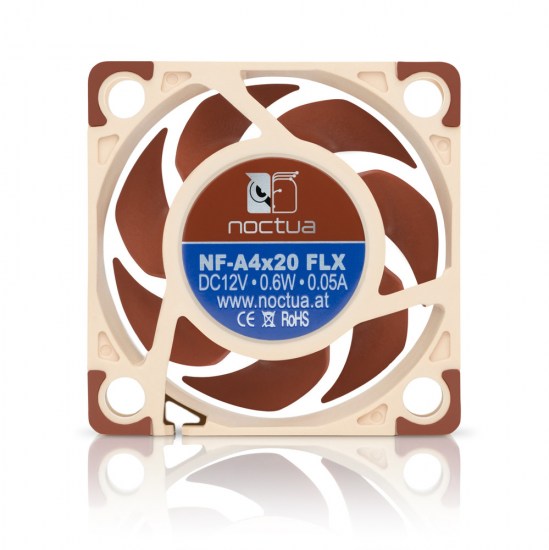

NF-A4x20 FLX
Featuring advanced aerodynamic design measures such as Flow Acceleration Channels and Noctua’s AAO frame, the NF-A4x20 is a highly optimised, premium-quality quiet fan in size 40x20mm. The FLX version provides 5000/4400/3700rpm speed settings via the supplied Low-Noise Adaptors and includes the OmniJoin™ Adaptor Set for easy connection to proprietary fan headers. Its superb running smoothness, reference-class SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for the highest demands.
FAN Specification
Size
40x40x20 mm
Mounting hole spacing
32x32 mm
Connector & pin-configuration
3-pin
Cable length
20cm + 30cm NA-EC1 extension cable
Bearing
SSO2
Blade geometry
A-Series with Flow Acceleration Channels
Frame technology
AAO (Advanced Acoustic Optimisation)
Rotational speed (+/- 10%)
5000 RPM
Rotational speed with L.N.A. (+/- 10%)
4400 RPM
Rotational Speed with U.L.N.A. (+/- 10%)
3700 RPM
Airflow
9,4 m³/h
Airflow with L.N.A.
8,3 m³/h
Airflow with U.L.N.A.
6,9 m³/h
Acoustical noise
14,9 dB(A)
Acoustical noise with L.N.A.
12,2 dB(A)
Acoustical noise with U.L.N.A.
8,5 dB(A)
Static pressure
2,26 mm H₂O
Static pressure with L.N.A.
1,75 mm H₂O
Static pressure with U.L.N.A.
1,23 mm H₂O
Max. input power
0,6 W
Max. input current
0,05 A
Operating voltage
12 V
MTTF
> 150.000 h

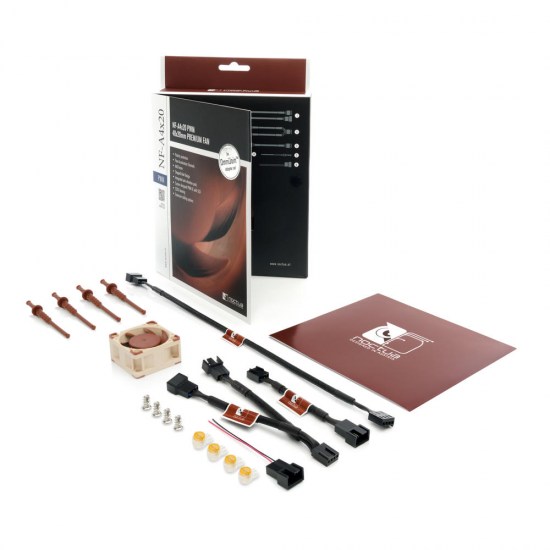

Scope of delivery
Low-Noise Adaptor (L.N.A.)
Ultra-Low-Noise Adaptor (U.L.N.A.)
30cm extension cable
OmniJoin™ adaptor set
NA-AV3 anti-vibration mounts
Fan screws
Warranty
6 years
