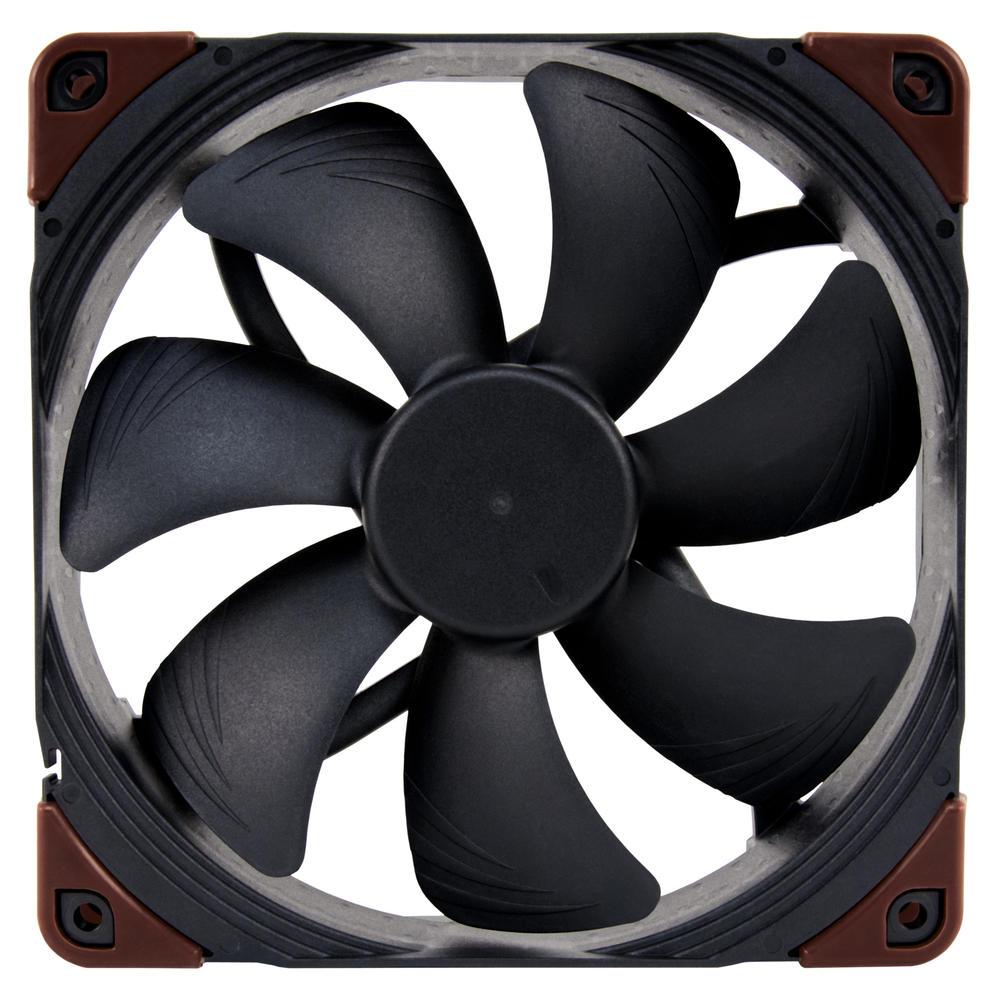

Conceived for industrial heavy duty applications that require enhanced cooling performance and advanced ingress protection, the NF-A14 industrialPPC (Protected Performance Cooling) is a ruggedised high-speed version of the award-winning retail model. Thanks to the outstanding aerodynamic efficiency of the NF-A14 design and the use of a novel three-phase motor, the industrialPPC version provides superior airflow and pressure capacity while keeping noise levels and power consumption moderate as against comparable high-speed fans. While its fibre-glass reinforced polyamide construction and certified water and dust protection make the NF-A14 industrialPPC suitable for operation in challenging environments, the renowned SSO2 bearing technology guarantees an MTTF of over 150.000hrs. Topped off with Noctua’s trusted reliability and 6 years manufacturer’s warranty, the NF-A14 industrialPPC is an ideal choice for highly demanding applications that require superior flow rates and ultimate dependability.
FAN Specification
Size
140x140x25 mm
Mounting hole spacing
124,5x124,5 mm
Connector & pin-configuration
4-pin PWM
Cable length
40cm
Bearing
SSO2
Blade geometry
A-Series with Flow Acceleration Channels
Frame technology
AAO
Material
Fibre-glass reinforced polyamide
Ingress protection
IP52
Motor type
Three-phase
Rotational speed (+/- 10%)
2000 RPM
Min. rotational speed (PWM, +/-20%)
500 RPM
Airflow
182,5 m³/h
Acoustical noise
31,5 dB(A)
Static pressure
4,18 mm H₂O
Max. input power
2,16 W
Max. input current
0,18 A
Operating voltage
12 V
MTTF
> 150.000 h
Scope of delivery
Fan
4 Fan Screws
Warranty
6 years
